RunCam2 Video Camera Shroud
The RunCam2 Shroud is the easiest way to attach the RunCam2 to your rocket!
It works with both the 4K and standard version of the camera.
It attaches to an airframe using (4) included #4 Self Tapping Screws for maximum durability. The mount can also be glued to your airframe.

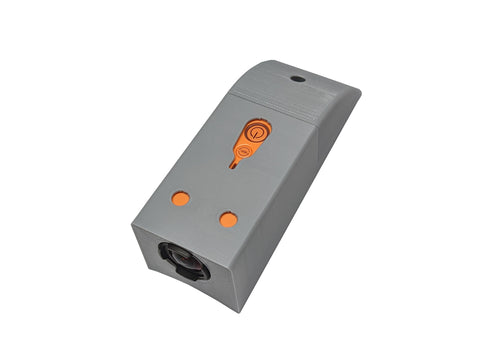

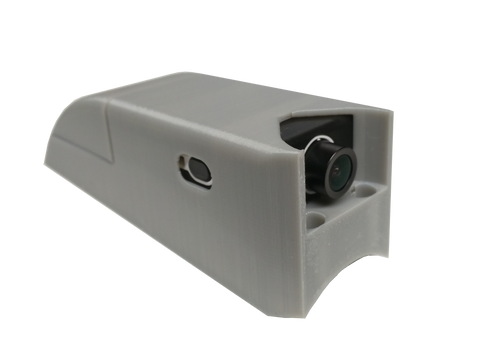

The camera snugly fits into the shroud, and is secured with an included #4 screw through the shroud cap.

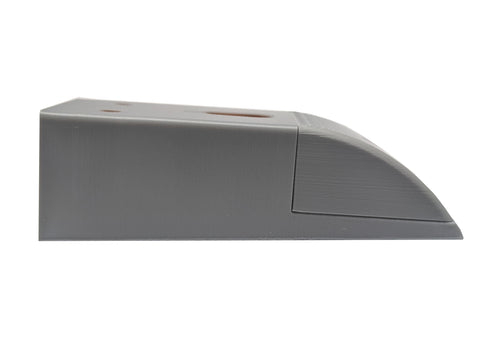

The shroud is angled 4deg away from your rocket to provide a better field of view.

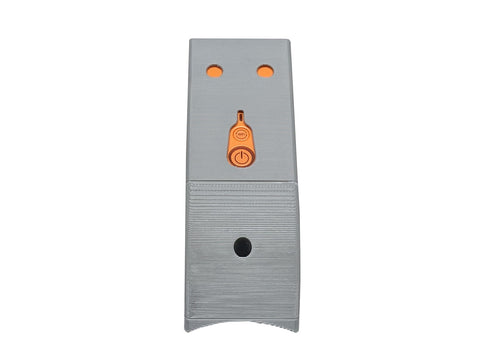

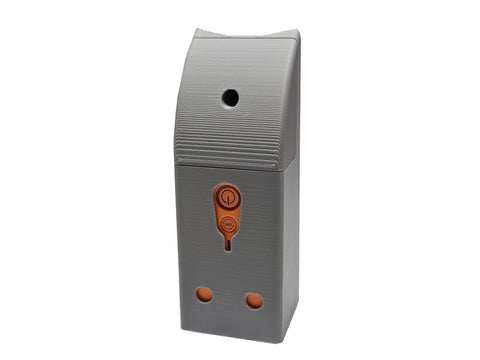

There is a cutout in the exterior of the shroud for easily accessing the cameras buttons and viewing the status light.
Available for any size rocket 2.26" (54mm airframe tube) and up.
- Shrouds 4" and under will fit airframes within ~1/4" of the listed size.
- Shrouds 5" and over will fit air frames within ~1/2" of the listed size.
- Custom shroud diameters are available for a small fee, just select custom from the size list and mention the size you need in the comments.
These are made from high quality 3D Printed PET Plastic, which is more impact resistant and has a much higher maximum temperature compared to PLA.
The shroud measures 4.5 x 1.69 x ~1.3 inches, and weighs 42 grams. (size and weight may vary slightly based on size selected)
A PDF with more detailed dimension information can be found here
The RunCam2 Camera is NOT included. Currently only available in grey.
Cameras can be purchased from a variety of sources including Amazon.
Standard Version https://amzn.to/39tGRBw
4K Version https://amzn.to/3eUpYmJ
The RunCam2 offers High Definition 1080p@60fps or 720p@120fps with built in WiFi for live preview and changing settings from an app.
