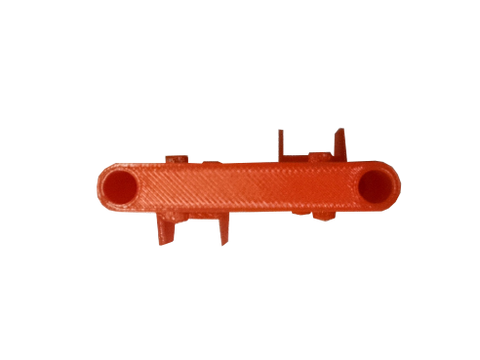

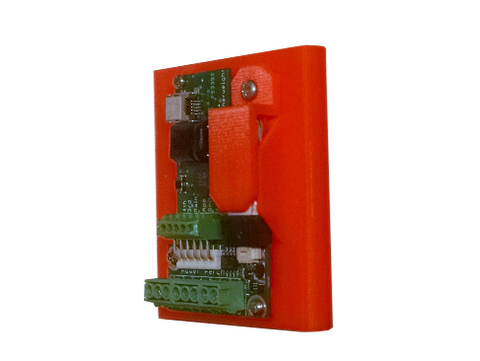

The 76mm dual power perch sled makes mounting (2) Raven power perches into a rocket AV bay simple and painless. There are no holes to drill or parts to glue, and the entire sled is engineered for simplicity.

Works with Raven 3 or 4

The magnetic switches are held close to the coupler surface for easy access on the pad.  Each altimeter is armed on a different side of the rocket.

A screw on cover for the Lipo battery is included for easy and secure battery installation.

The power perch sled is designed for 1/4-20 all-thread with a 2 inch hole spacing.

In the event of a catastrophic airframe failure, the bright orange color makes finding your expensive electronics in a field much easier.

These are now made from high quality 3D Printed PET Plastic, which is more impact resistant and has a much higher maximum temperature compared to PLA

Details:

• Weight without altimeters - 25g
• Dimensions: 2.75" long x 2.38" wide x 1.25" deep (with both battery covers mounted)
• Mounts for a Raven 3 and Power Perch on each side
• Mounting: (2x) 1/4-20  all-thread on 2" spacing
• Comes with (8) #2 screws and nylon standoffs, as well as (4) #4 screws for the battery holders
• Currently only available in high visibility orange
• Includes the sled, (2) battery covers, screws, and nylon standoffs
• Does NOT come with altimeters, batteries, battery clips, or switches

Also available in a 98mm version
